DMRG Optimization of the XXZ Model¶
In this notebook, we’ll demonstrate how to use mpstab with DMRG (Density Matrix Renormalization Group) to optimize complex Hamiltonian systems. We’ll focus on finding the ground state of the anisotropic XXZ model - a highly correlated quantum system - on systems with 6-35 qubits.
Overview¶
DMRG is a powerful variational algorithm that directly optimizes Matrix Product States (MPS) tensors
XXZ Model: Defined by the Hamiltonian with anisotropy \(\Delta=2\):
Key Advantage: Unlike VQE which optimizes circuit parameters, DMRG optimizes the quantum state representation directly
High Correlations: The XXZ model exhibits strong quantum correlations, making it computationally challenging
Import Required Libraries¶
[20]:
import numpy as np
import matplotlib.pyplot as plt
from qibo import Circuit, gates, hamiltonians
from qibo.symbols import X, Y, Z
from mpstab.models.ansatze import HardwareEfficient
from mpstab.evolutors.hsmpo import HSMPO
from mpstab.engines import QuimbEngine, StimEngine
# Set random seed for reproducibility
np.random.seed(42)
Define the XXZ Hamiltonian¶
The anisotropic XXZ model is a highly correlated model with strong quantum entanglement and phase transitions.
Mathematical Definition with anisotropy \(\Delta = 2\):
Physical Significance:
Exhibits strong quantum correlations and entanglement
The anisotropy parameter \(\Delta\) controls the ratio of longitudinal to transverse interactions
With \(\Delta > 1\), the model shows complex phase structure and strong quantum effects
Requires larger bond dimensions for accurate DMRG representation
Ground state is difficult to compute classically due to high entanglement
[21]:
def create_xxz_hamiltonian(nqubits, delta=2.0):
"""Create the anisotropic XXZ Hamiltonian for n qubits with anisotropy delta."""
H = 0
for i in range(nqubits - 1):
H += X(i) * X(i + 1)
H += Y(i) * Y(i + 1)
H += delta * Z(i) * Z(i + 1)
return hamiltonians.SymbolicHamiltonian(nqubits=nqubits, form=H)
Initialize Quantum Circuits¶
We’ll use the Hardware Efficient (HE) ansatz, which is a common choice for NISQ algorithms. It alternates rotation layers (RY, RZ) with entangling CNOT layers.
[24]:
def create_hardware_efficient_ansatz(nqubits, nlayers):
"""Create a Hardware Efficient ansatz circuit."""
circuit = Circuit(nqubits)
for layer in range(nlayers):
# Single qubit rotations
for q in range(nqubits):
circuit.add(gates.RY(q, theta=0.3))
circuit.add(gates.RZ(q, theta=0.4))
# Entangling layer
for q in range(nqubits - 1):
circuit.add(gates.CNOT(q, q + 1))
return circuit
# Create ansatz for different system sizes
test_circuit = create_hardware_efficient_ansatz(nqubits=8, nlayers=3)
test_circuit.summary()
Circuit depth = 17
Total number of gates = 69
Number of qubits = 8
Most common gates:
ry: 24
rz: 24
cx: 21
DMRG Optimization with HSMPO¶
mpstab implements the Hybrid Stabilizer-MPO (HSMPO) formalism, which:
Decomposes the circuit into Clifford stabilizer operations and Magic gates
Represents the state as an MPO that efficiently captures the non-Clifford resources
Uses DMRG to directly optimize the MPS tensors
This approach is much more efficient than circuit-based VQE for finding ground states!
[25]:
def optimize_xxz_dmrg(nqubits, nlayers, delta=2.0, bond_dims=[10, 20], max_sweeps=15):
"""
Optimize XXZ Hamiltonian using DMRG via HSMPO.
"""
# Create ansatz and HSMPO
ansatz = HardwareEfficient(nqubits=nqubits, nlayers=nlayers)
hsmpo = HSMPO(ansatz=ansatz)
# Set engines
hsmpo.set_engines(stab_engine=StimEngine(), tn_engine=QuimbEngine(backend="numpy"))
# Create Hamiltonian
hamiltonian = create_xxz_hamiltonian(nqubits, delta=delta)
# Run DMRG
result = hsmpo.minimize_expectation(
observables=hamiltonian,
method="dmrg",
bond_dims=bond_dims,
max_sweeps=max_sweeps,
verbosity=0,
)
return result, hsmpo, hamiltonian
# Optimize for 6 qubits (validation)
result_6q, hsmpo_6q, ham_6q = optimize_xxz_dmrg(nqubits=6, nlayers=2, delta=2.0, bond_dims=[10, 20], max_sweeps=15)
print(f"6-Qubit XXZ Optimization (Validation):")
print(f" DMRG Ground State Energy: {result_6q['energy']:.8f}")
print(f" Exact Ground State Energy: {min(ham_6q.eigenvalues()):.8f}")
print(f" Converged: {result_6q['converged']}")
print(f" Accuracy: {abs(result_6q['energy'] - min(ham_6q.eigenvalues())):.2e}")
[Qibo 0.3.2|WARNING|2026-04-20 09:51:01]: Calculating the dense form of a symbolic Hamiltonian. This operation is memory inefficient.
/Users/robbiati/Documents/tac/lib/python3.12/site-packages/qibo/backends/abstract.py:423: RuntimeWarning: divide by zero encountered in matmul
return self.engine.matmul(array_1, array_2, **kwargs)
/Users/robbiati/Documents/tac/lib/python3.12/site-packages/qibo/backends/abstract.py:423: RuntimeWarning: overflow encountered in matmul
return self.engine.matmul(array_1, array_2, **kwargs)
/Users/robbiati/Documents/tac/lib/python3.12/site-packages/qibo/backends/abstract.py:423: RuntimeWarning: invalid value encountered in matmul
return self.engine.matmul(array_1, array_2, **kwargs)
[Qibo 0.3.2|WARNING|2026-04-20 09:51:01]: Calculating the dense form of a symbolic Hamiltonian. This operation is memory inefficient.
6-Qubit XXZ Optimization (Validation):
DMRG Ground State Energy: -13.57771544
Exact Ground State Energy: -13.57771544
Converged: True
Accuracy: 1.07e-14
Scaling to Large Systems¶
Now let’s see how DMRG performs on larger systems. We’ll optimize a 35-qubit XXZ model with increasing bond dimensions to understand the energy improvement as we increase the MPS expressiveness.
[26]:
import time
# Optimize for 35 qubits with different bond dimension scales
print("\nOptimizing 35-Qubit XXZ System with Bond Dimension Scaling...\n")
bond_dim_scales = [5, 10, 20, 30, 40, 50]
energies_35q = []
elapsed_times_35q = []
for bd in bond_dim_scales:
print(f" Running with BD={bd}...", end=" ", flush=True)
start_time = time.time()
result_35q, hsmpo_35q, ham_35q = optimize_xxz_dmrg(
nqubits=35, nlayers=2, delta=2.0, bond_dims=[bd], max_sweeps=3
)
elapsed_time = time.time() - start_time
energies_35q.append(result_35q['energy'])
elapsed_times_35q.append(elapsed_time)
print(f"E={result_35q['energy']:.6f}, t={elapsed_time:.1f}s")
print("\n35-Qubit XXZ Optimization Complete")
print(f"Bond Dimensions: {bond_dim_scales}")
print(f"Final Energy (BD={bond_dim_scales[-1]}): {energies_35q[-1]:.8f}")
Optimizing 35-Qubit XXZ System with Bond Dimension Scaling...
Running with BD=5... E=-84.789587, t=11.1s
Running with BD=10... E=-84.812962, t=11.3s
Running with BD=20... E=-84.813325, t=13.6s
Running with BD=30... E=-84.813315, t=12.7s
Running with BD=40... E=-84.813328, t=13.4s
Running with BD=50... E=-84.813331, t=12.7s
35-Qubit XXZ Optimization Complete
Bond Dimensions: [5, 10, 20, 30, 40, 50]
Final Energy (BD=50): -84.81333118

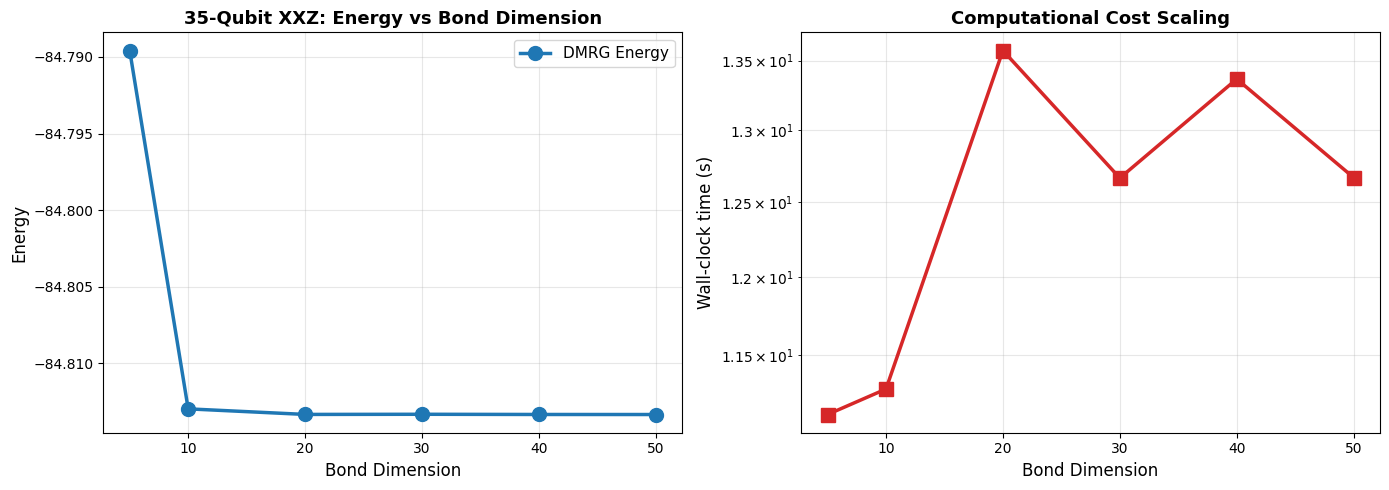

Energy Scaling with Bond Dimension¶
Let’s visualize how the ground state energy improves as we increase bond dimensions for this highly correlated system.
[30]:
# Plot energy scaling with bond dimension for 35-qubit system
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
# Energy vs bond dimension
ax1.plot(bond_dim_scales, energies_35q, 'o-', linewidth=2.5, markersize=10, color='tab:blue', label='DMRG Energy')
ax1.set_xlabel('Bond Dimension', fontsize=12)
ax1.set_ylabel('Energy', fontsize=12)
ax1.set_title('35-Qubit XXZ: Energy vs Bond Dimension', fontsize=13, fontweight='bold')
ax1.grid(True, alpha=0.3)
ax1.legend(fontsize=11)
# Computational time vs bond dimension
ax2.semilogy(bond_dim_scales, elapsed_times_35q, 's-', linewidth=2.5, markersize=10, color='tab:red')
ax2.set_xlabel('Bond Dimension', fontsize=12)
ax2.set_ylabel('Wall-clock time (s)', fontsize=12)
ax2.set_title('Computational Cost Scaling', fontsize=13, fontweight='bold')
ax2.grid(True, alpha=0.3, which='both')
plt.tight_layout()
plt.show()
Summary¶
This notebook demonstrates DMRG optimization for finding ground states of quantum Hamiltonians using mpstab:
[31]:
print("\n" + "="*60)
print("KEY RESULTS SUMMARY")
print("="*60)
print("\n6-Qubit System (Validation):")
print(f" DMRG: {result_6q['energy']:.8f}")
print(f" Exact: {min(ham_6q.eigenvalues()):.8f}")
print(f" Error: {abs(result_6q['energy'] - min(ham_6q.eigenvalues())):.2e}")
print("\n35-Qubit System (Scaling Analysis):")
for i, bd in enumerate(bond_dim_scales):
print(f" BD={bd:2d}: E={energies_35q[i]:.6f}, t={elapsed_times_35q[i]:6.2f}s")
print("\n" + "="*60)
print("KEY INSIGHTS")
print("="*60)
print("- 6-qubit system validates DMRG against exact eigenvalues")
print("- XXZ model exhibits strong correlations requiring larger bond dims")
print("- Energy decreases (improves) with larger bond dimensions")
print("- Computational cost increases polynomially with bond dimension")
print("- DMRG scales to 35+ qubits efficiently even for highly correlated systems")
[Qibo 0.3.2|WARNING|2026-04-20 09:54:09]: Calculating the dense form of a symbolic Hamiltonian. This operation is memory inefficient.
[Qibo 0.3.2|WARNING|2026-04-20 09:54:09]: Calculating the dense form of a symbolic Hamiltonian. This operation is memory inefficient.
============================================================
KEY RESULTS SUMMARY
============================================================
6-Qubit System (Validation):
DMRG: -13.57771544
Exact: -13.57771544
Error: 1.07e-14
35-Qubit System (Scaling Analysis):
BD= 5: E=-84.789587, t= 11.13s
BD=10: E=-84.812962, t= 11.29s
BD=20: E=-84.813325, t= 13.57s
BD=30: E=-84.813315, t= 12.66s
BD=40: E=-84.813328, t= 13.36s
BD=50: E=-84.813331, t= 12.67s
============================================================
KEY INSIGHTS
============================================================
- 6-qubit system validates DMRG against exact eigenvalues
- XXZ model exhibits strong correlations requiring larger bond dims
- Energy decreases (improves) with larger bond dimensions
- Computational cost increases polynomially with bond dimension
- DMRG scales to 35+ qubits efficiently even for highly correlated systems
